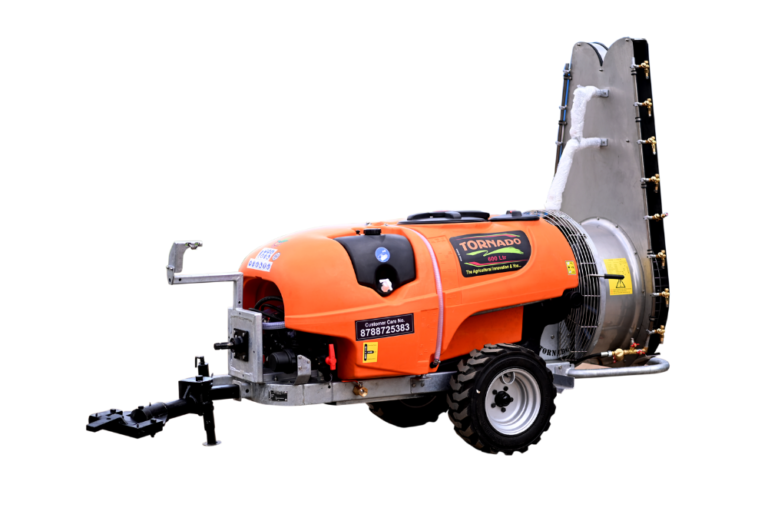

TORNADO 600

Varpe Agro Tech Pvt Ltd is one of the best Air blast Sprayer Manufacturer in India, which is used for all types of crops in horticulture farming, such as Grapes, Pomegranates, Oranges, Mangoes, Guava, and Custard Apples. Varpe Agro Tech Pvt Ltd Low Volume Sprayers come with a rear air conveyor system, which produces perfect air balancing with the highest air output and low power consumption. It is an air conveyor system used with stainless steel material which consists of a shell, fins, backplate, bottom baffle, and deflectors. Varpe Agro Tech Pvt Ltd Tractor Sprayer is provided with a compact size tank. The tank is having a 600 and 800lit main water tank with a water tube level indicator. These models are useful for those farmers having a tractor around 24-27HP power can easily use this model. This Tractor Trailed Sprayer has an attached high-pressure jet inside the main tank for uniform chemical mixing, thus providing equal chemical concentration throughout the spraying and basket mixture for preparing the chemical. Due to the 3-axis toe bar mechanism, Orchard Sprayer gives the lowest turning radius for turning in the low-spacing vineyards. This model uses a 3-way adjustable wheel axle, which can be used for adjusting the Track Width, Height, Tyre Reverse, and Forward. Airotec Turbo, an Air Assisted Sprayer, has a compact dimension compared to other imported sprayers. The most important benefit of this tractor operated sprayer is that it’s equipped with a manually operated controller, giving the accurate delivery of chemicals while spraying.



Spraying solutions are filtered with the help of a Suction filter (Primary) and Brass line filter (Secondary) and can finally pass through the high-quality Italian brass nozzles. Varpe Agro Equipment has taken care of safety by providing safety devices like Rubber coupling, which reduces the vibration and jerk coming from the tractor. The pressure relief valve automatically opens at 40 bar pressure to protect the pump from any damage due to excessive pressure. The rear bumper protects the shell assembly from damages.



Varpe Agro Tech Pvt Ltd Tractor Blower works on the tractor PTO power, transmitted by a wide-angle PTO shaft to the machine. This shaft is connected between the diaphragm pump to the tractor PTO shaft as the power gets transferred to a 2-speed gearbox, i.e., low-high and neutral, with 1:4 and 1:5 gear ratios. Hot-dip galvanized chassis for long life and prevention from rusting, and similarly, scrapper, side guards, bottom plate, and rear bumper are processed by a hot-dip galvanizing process.




SPECIFICATION

ParameterTORNADO 600 L
Tank600 Liter
Pump75 LPM Diaphragm
Fan616 mm
Nozzle10 Nozzles
Air Output32 m/sec
Tractor HP24 HP & Above
Gearbox2 Speed+1 Neutral

BENEFITS & FEATURES

Government subsidy availableHigh air output with perfect air balancing at both side with lowest power consumption
Loan facility available with attractive interest rateBest for operations in low spacing vinyards.
Uniform coverageManual Controller – 5-mode controller & 2-way nozzles provide accurate delivery of
chemicals
Proven Dipping ResultsSame Bullet can be used on 18HP & above tractor with the help of customized tractor
mounting plates.
Proven labour savingSafety Devices – Innova rubber coupling & pressure relief valve
Doorstep service and Installation by the trained
service engineer

1-year warrantyTank – HDPE anti chemical coating on inner surface
Best For CropAgitator – for proper agitation of chemical at the time of spraying
Proven chemical savingTyre position adjustment – Track width, height, forward & reverse position
 Scrapper – for removing mud from tyre
 Airotec turbo 600L and 800L models are also available in double fan.
